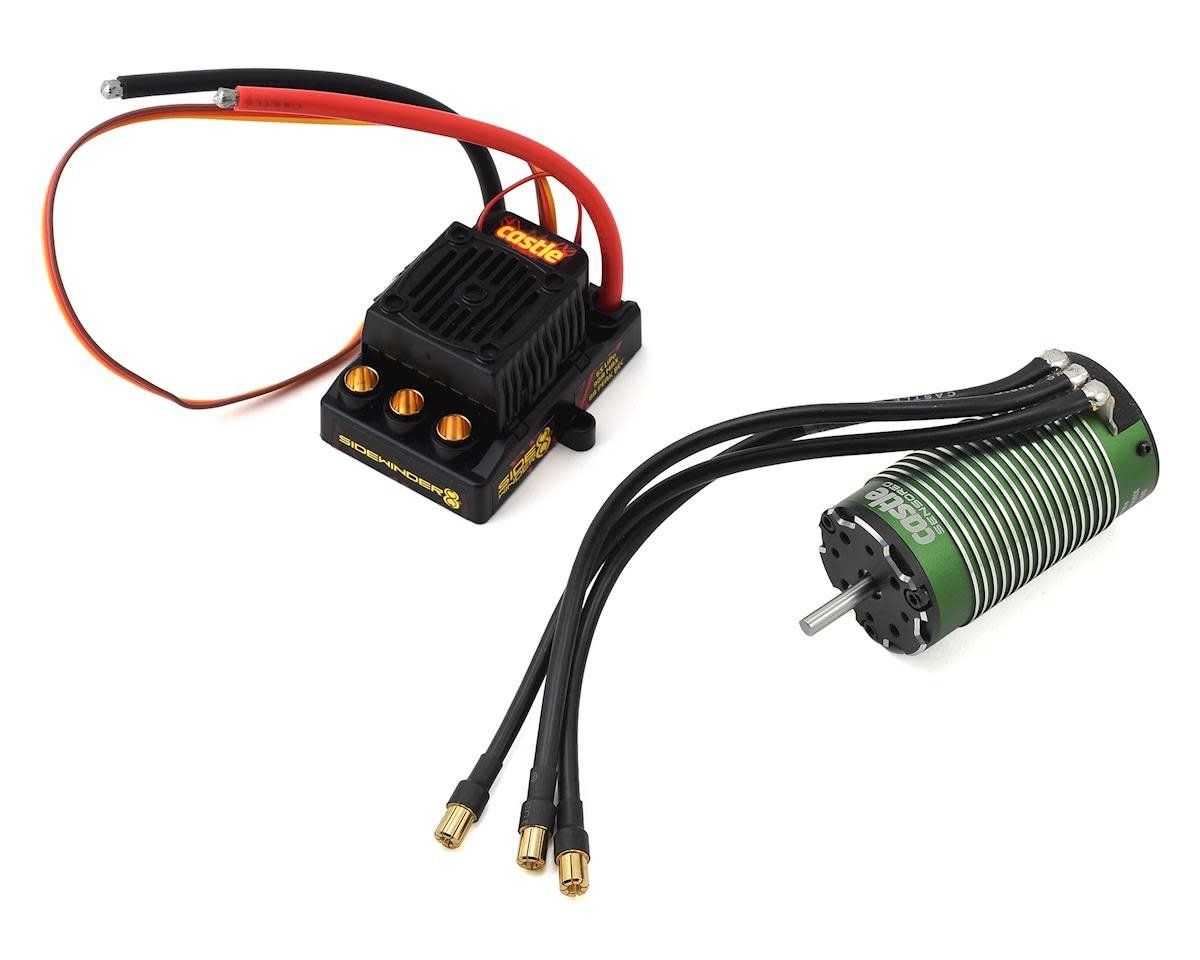

#010-0139-01 Castle Creations "Sidewinder 8th" 1/8 Scale Brushless Car Package (2200kV)

• Technical specs:
  • Input Voltage Range: MIN: 2S LiPo MAX: 6S LiPo (25.2V)
  • BEC Specifications: 5.5V fixed; 8A peak
  • Operating Environment: Waterproof* design allows for use in nearly any environment.
  • Brake: Proportional
  • Reversible: Yes, but may be disabled for racing.
  • On/Off Switch: No
  • Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
  • Length: 2.45" (62.2mm)
  • Width: 2.20" (56mm)
  • Height: 1.33" (34mm)
  • Weight (with wires): 3.52 oz. (100g)
  • Connectors: 6.5mm female bullets for motor connection.
  • Recommended Motors: Combo includes Castle sensored 1515 2200Kv: Max Cells: 6s Lipo or 16 NiMH
  • Max. Recommended Vehicle Weight: Less than 11 lbs, with batteries, ready-to-run
  • Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter (sold separately).
• Motor Specs:
  • Input Voltage Range: 2-6S LiPo
  • Weight (w/wires): 429g / 15.1oz
  • Shaft Size:
    • Length: 20mm
    • Diameter: 5mm
    • Mounting Hole Specifications: M3 and M4 @ 25mm
  • Cooling Fan: Optional, coming soon!
  • Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
  • Application Guidelines: Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs. Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 1 lbs, with batteries, ready-to-run.


Product Use Statements: *Although Sidewinder 8 and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

 **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
