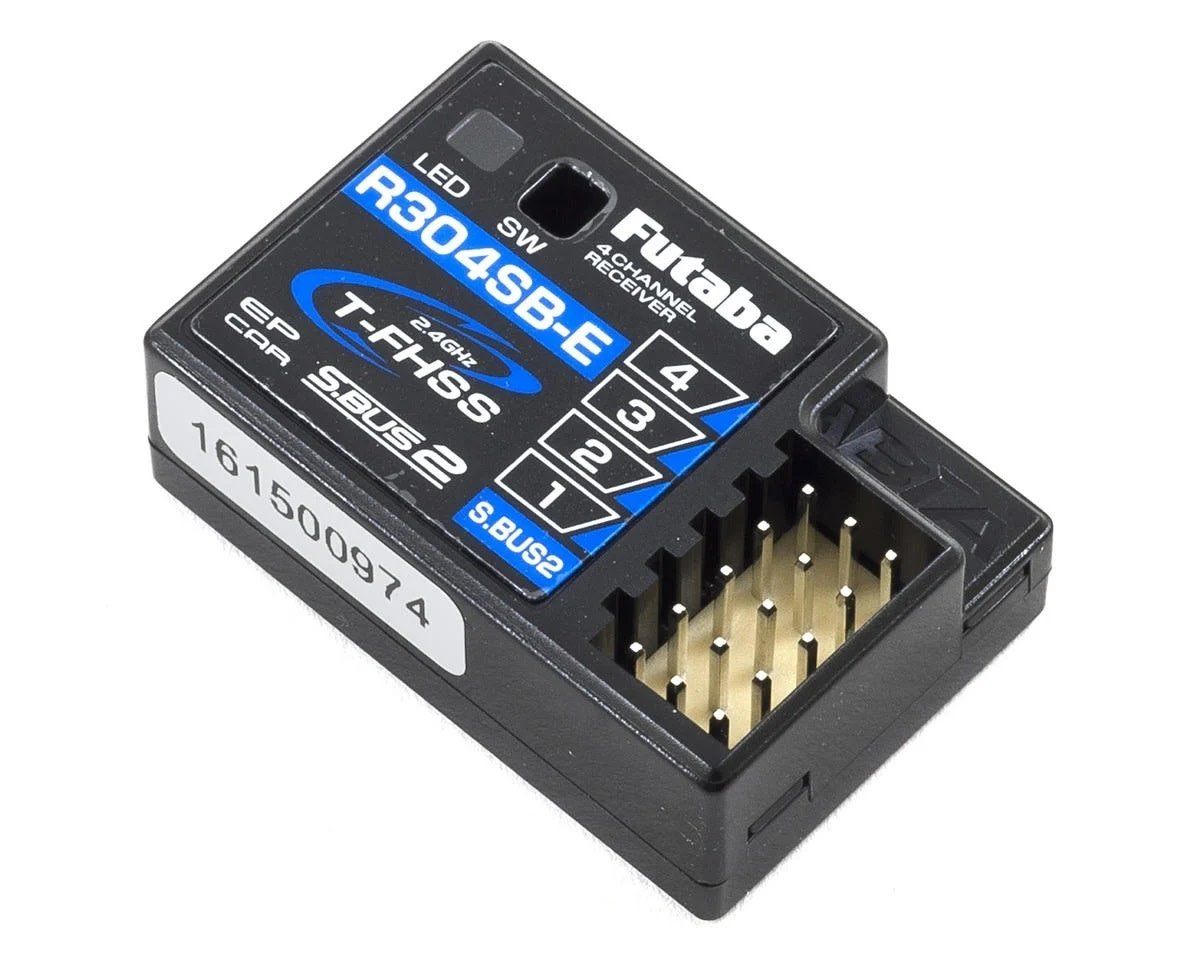

#01102180-3 Futaba R304SB-E T-FHSS 4-Channel Telemetry 2.4GHz Receiver (EP Only)

The Futaba R304SB-E T-FHSS 4-Channel Telemetry 2.4GHz Receiver is only compatible with Futaba T-FHSS telemetry compatible transmitters. The R304SB-E is very similar to the R304SB (FUTL7680) in that they both feature 4-channels, both feature S. Bus2, both are Telemetry enabled and both costs roughly the same price.

However, the two receivers differ in two fundamental areas: this R304SB-E is only intended for electric vehicles and features the benefit of having a non-exposed built-in antenna. The R304SB is compatible with electric/nitro/gas applications and the antenna is fully exposed.

NOTE:

• The R304SB-E receiver is recommended for electric powered models only. This is NOT recommended for use with nitro or gas-powered models.
• Not compatible with the Futaba FHSS, S-FHSS, FASSTest or FASST transmitters.

Features:

• • T-FHSS System
  • Telemetry Enabled
  • 4-Channels
  • Built-in Hidden Antenna
  • Electric Vehicle Use Only

Specifications:

• Futaba System: T-FHSS
• S.Bus2: Yes
• Channels: 4
• Range: 70m (230ft) (at best conditions)
• Power Requirement Rated Voltage: 4.8-7.4V
• Usable Voltage: 3.5-8.4V
• Size: 1.38x0.91x0.33" (35.1x23.2x12.5mm)
• Weight: 0.23oz (6.7g)
• Number of Ports: 5
• PWM Output: 4
• SBUS Ports: 0
• SBUS2 Ports: 1
• FASST: No
• Telemetry: Yes (T-FHSS)
• S-FHSS: No
• High Speed: Yes
• High Voltage: Yes
• Connector: J (STND)
• Range: Only for Electric Powered Car Models

NOTE:

• The R304SB-E receiver is recommended for electric powered models only. This is NOT compatible with nitro or gas powered models.
• Not compatible with the Futaba S-FHSS, FHSS, FASSTest or FASST transmitters.
