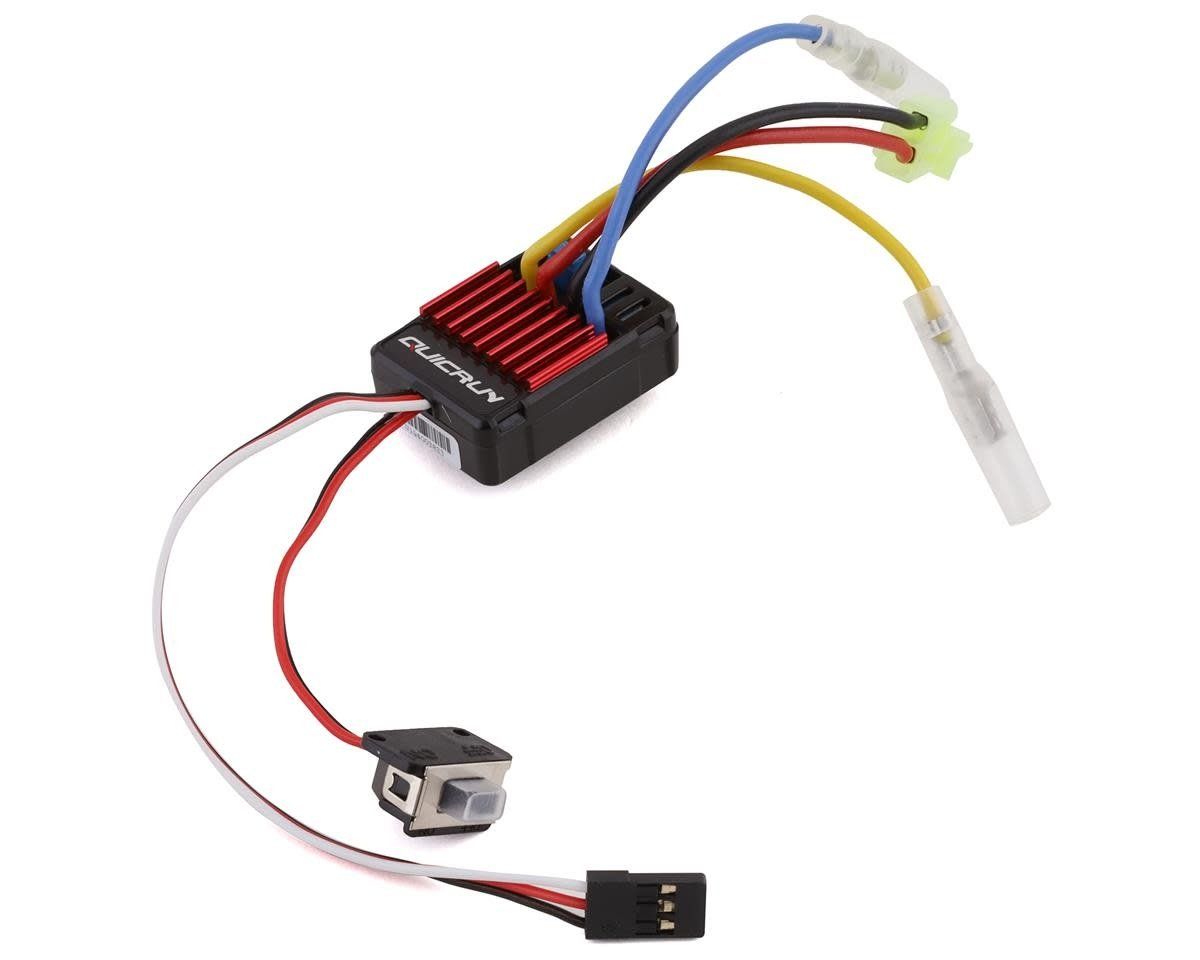

#30120000 Hobbywing Quicrun 1625 1/18th Scale Brushed ESC
SKU 30120000
$19.99
In stock
1
Product Details
UPC: 088718513036
Brand: Hobbywing
Tags: 1/18th Scale,1625,Hobbywing,QuicRun,brushed,esc
Features:
- Waterproof and dustproof, suitable for races in all weather conditions.
- Small size with built-in capacitor module.
- Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- ESC parameters are easy to set withwith jumpers.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection.
- Risk Free Manufacturers limited warranty.
Specifications:
- Cont. Current /Peak Current/ Resistance: 25A/100A/0.003?
- Motor Type Supported: Brushed Motor
- Car Applicable: 1:16 &1:18 On-road/Off-road/Buggy/Monster
- Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
- Brushed Motor Limit:
- 2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM<30000 @7.2V
- 3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM<20000 @7.2V
- BEC Output: 1A/5V (Linear Mode)
- PWM Frequency: 1KHz
- Size/ Weight: 34(L)*24(W)*14(H) / 23.5g
- Running Modes: Forward/Reverse/Brake
