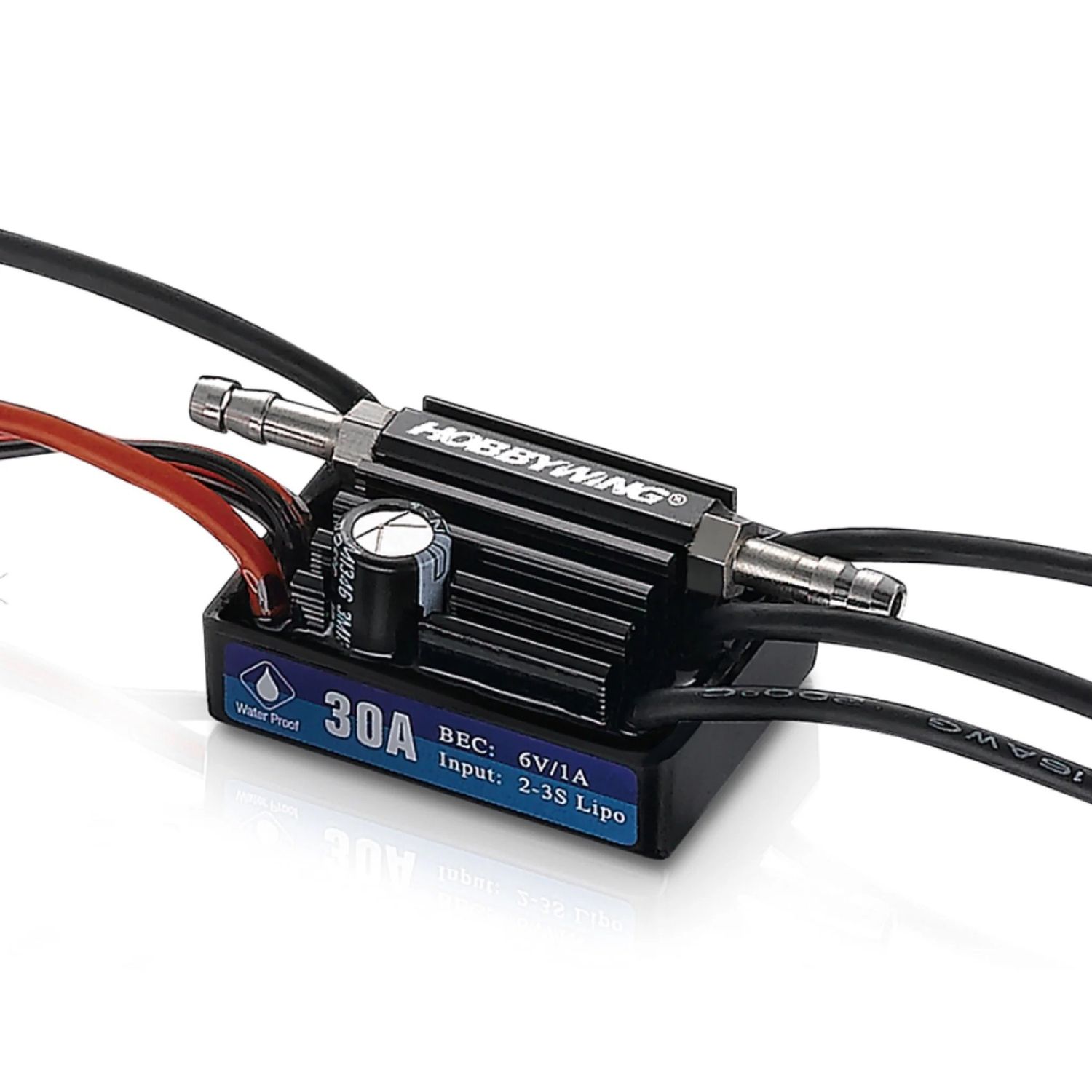

#30302060 Hobbywing Seaking 30A V3 ESC

• Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions;
• High quality components have very strong over-current withstanding capabilities;
• High-efficiency water cooling system can easily dissipate the heat produced in operation under high load;
• The special firmware designed for RC boats can give an acceleration with more punch and the sailing more stable
• Multiple protections such as low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable

Specifications:

• Cont./Peak Current: 30A/180A
• Boat Applicable: Boat length < 45cm
• Input: 2-3S LiPo
• BEC Type/BEC Output: Liner Mode/6V/1A
• External Programming Port: Not Needed, the Rx wire on the ESC can be used to connect the LED program box with ESC
• Water Cooling Pipe: (Inside/Outside): Ф2.0 / 4.0mm
• Input Wire:
  • Red- 14AWG-100mm*1
  • Black- 14AWG-100mm*1
• Output Wire: Black-16AWG-75mm*3
• Size: 54.5x28.3x18.7mm (Includes the Water Cooling Pipe)
• Weight: 41g

Parameter List of SEAKING V3 ESC
