#38030002 Quickrun 16BL30 G2 ESC & 2435SL 4500KV G3 Motor Combo
SKU 38030002
$49.99
In stock
Product Details
UPC: 088718520300
Brand: Hobbywing

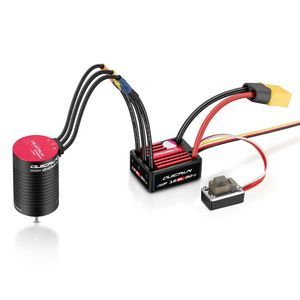

Quickrun 16BL30 G2 ESC & 2435SL 4500KV G3 Motor Combo
Includes:
- (1) HOBBYWING QUICRUN 16BL30 G2 ESC package
- (1) HOBBYWING QUICRUN 2435SL motor package
ESC Features:
- Excellent performance, specially designed for 1/16 & 1/18 On-road & Off-Road. Designed to pair with Quicrun 2030/2435 G2 Motor
- The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
- Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
- Compared to the G1 ESC, the BEC's continuous current has been upgraded from 1A to 2A, with a peak current of up to 4A. The output voltage can be switched between 6V and 7.4V. Easily powering high-torque and high voltage servos. This provides faster response and more precise control.
- IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.
- The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.
- The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.
Motor Features:
- High Efficiency means more POWER while keeping TEMP low!
- 4 pole rotor design for stronger torque, the motor has strong explosive force.
- Compared with the previous generation of motors, the output power and efficiency are increased by more than 4%, and the motor temperature is effectively reduced under the same load.
- 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
Motor Specifications:
- LiPo Cells: 2S
- No-load Current (A): 2.1A / 4500kv
- Dia / Length: D=24mm (0.94") L=36mm (1.42")
- Shaft Dia / Length: D=2mm (0.08") L=12mm (0.47")
- Bearing size: D8*D3*T4
- Pole: 4
- Weight: 61.2g
- Applications: 1/16 & 1/18 On-road, Off-road
