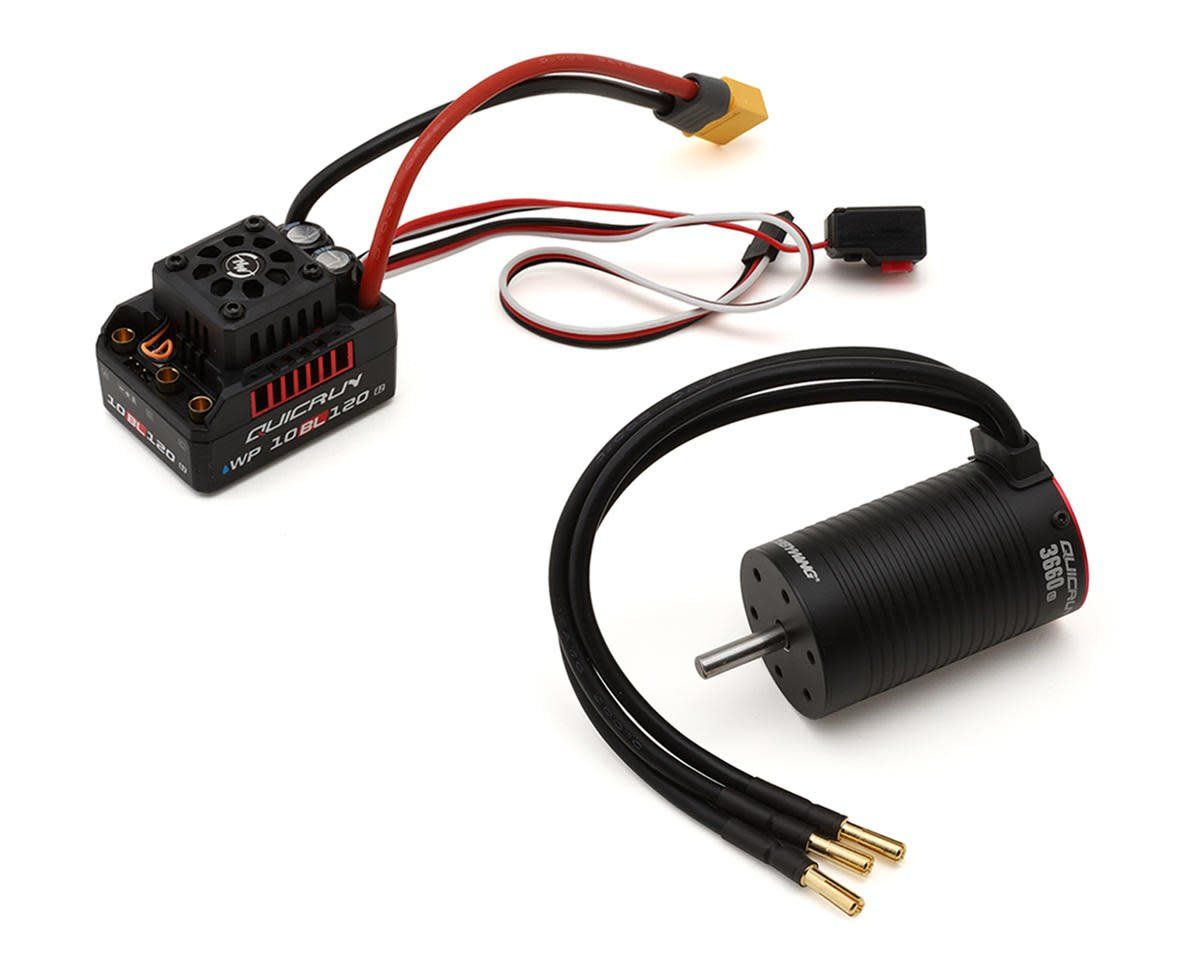

#38030211 Hobbywing QuicRun 10BL120 G2 Sensorless Brushless ESC/3660SL Motor Combo (3700kV)

The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL's built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.

Features:

• G2 QuicRun 10BL120
  • Intelligent freewheeling technology
  • Extreme performance
  • Powerful built-in BEC
  • Efficient cooling system
  • Capacitor Thermal Protection
  • Built-in capacitor
  • IP-67 waterproof Rating
• G2 QuicRun 3660SL
  • High efficiency for more power with lower temperatures!
  • 4-pole rotor design for more torque with strong explosive force.
  • Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
  • 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.

Specifications:

• ESC:
  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensorless
  • Waterproof: IP-67
  • Current:
    • Continuous: 120A
    • Peak: 760A
  • Input Voltage: 2-4S LiPo
  • BEC Output: 6V/7.4V @ 5A
  • Output Connectors: 4.0mm Bullets
  • Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
  • Weight: 4.19oz (119g)
• Motor:
  • Input Voltage: 2S-3S LiPo
  • KV: 3700kV
  • Pole: 4
  • Motor Diameter: 1.42" (36mm)
  • Motor Length: 2.36" (60mm)
  • Shaft Diameter: 0.20" (5mm)
  • Shaft Length: 0.73" (18.5mm)
  • Front Bearing size: D16*D5*T5
  • Rear Bearing size: D13*D5*T4
  • Weight: 273g

Includes:

• (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC
• (1) QuicRun 3660SL G2 Sensorless Brushless Motor (3700kV)
