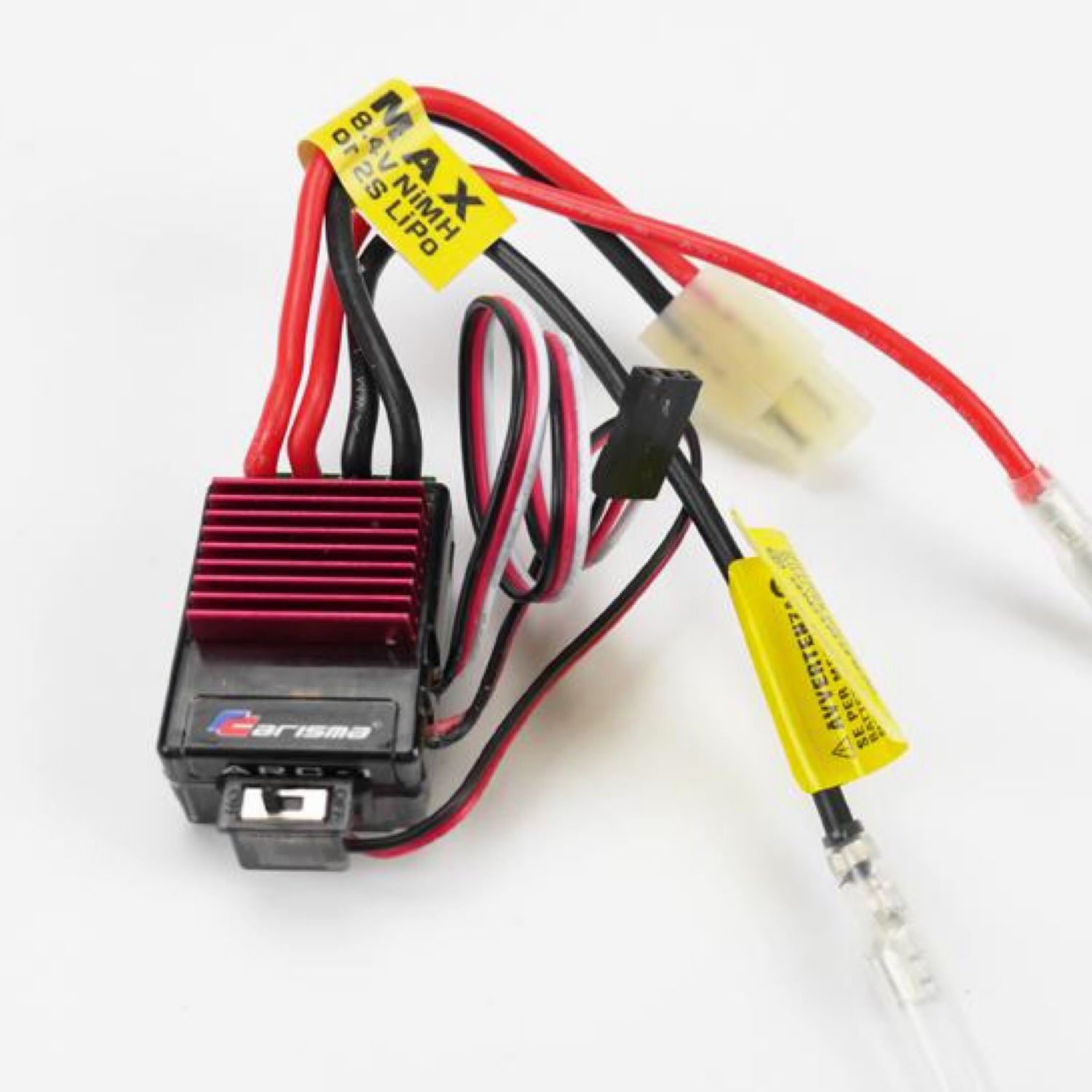

Carisma ARC-1 Brushed Crawler ESC #15914

ARC-1 Brushed Crawler ESC

Features:

• Waterproof
• Lipo and NiMH Friendly
• End points calibration
• 4 ESC modeS
• Thermal protection
• Stall protection

Specifications:

• Size: 40mm(L) x 27mm (W) x 22mm (H)
• Motor Connector: 4mm bullet for brushed motor
• Battery Connector: Tamiya Style
• Forward:
  • Max Instantaneous Current: 500A
  • Max Continuous Current: 40A
  • On Resistance: 0.0015 ohm / phase
• Backward:
  • Max Instantaneous Current: 250A
  • Max Continuous Current: 20A
  • On Resistance: 0.003 ohm / phase
• PWM frequency: 1 kHz
• Operation Voltage: 4.8V ~ 8.4V
• BEC: 5.6V/1A max at 7.2V
