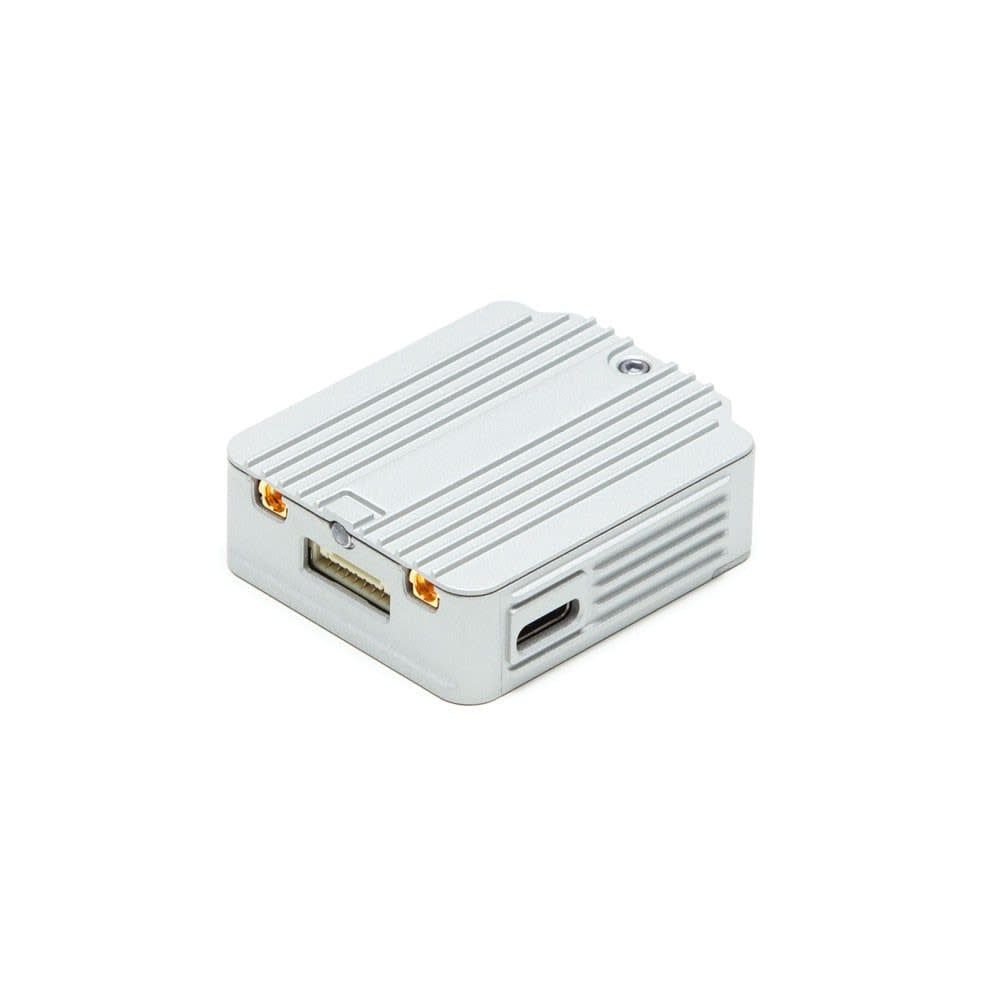

DJI FPV Air Unit Module

The FPV Air Unit Module features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously. Houses the transceiver for the DJI HD FPV system.

Does not come with HD FPV camera.

Specifications:

• Air Unit Dimensions: 44 × 37.8 × 14.4 mm
• Operating Frequency: 5.725-5.850 GHz
• Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
• Min. Latency (end-to-end)
  • Low Latency Mode (720p/120fps): <28 ms
  • High-Quality Mode (720p/60fps): <40 ms
• Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
• Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
• I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
• Operating Temperature Range: 32°to 104°F (0° to 40°C)
• Input Power: 7.4-17.6 V, about 4-9 W
• Channels: 8

Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

Includes

• 1 x DJI FPV Air Unit Module
