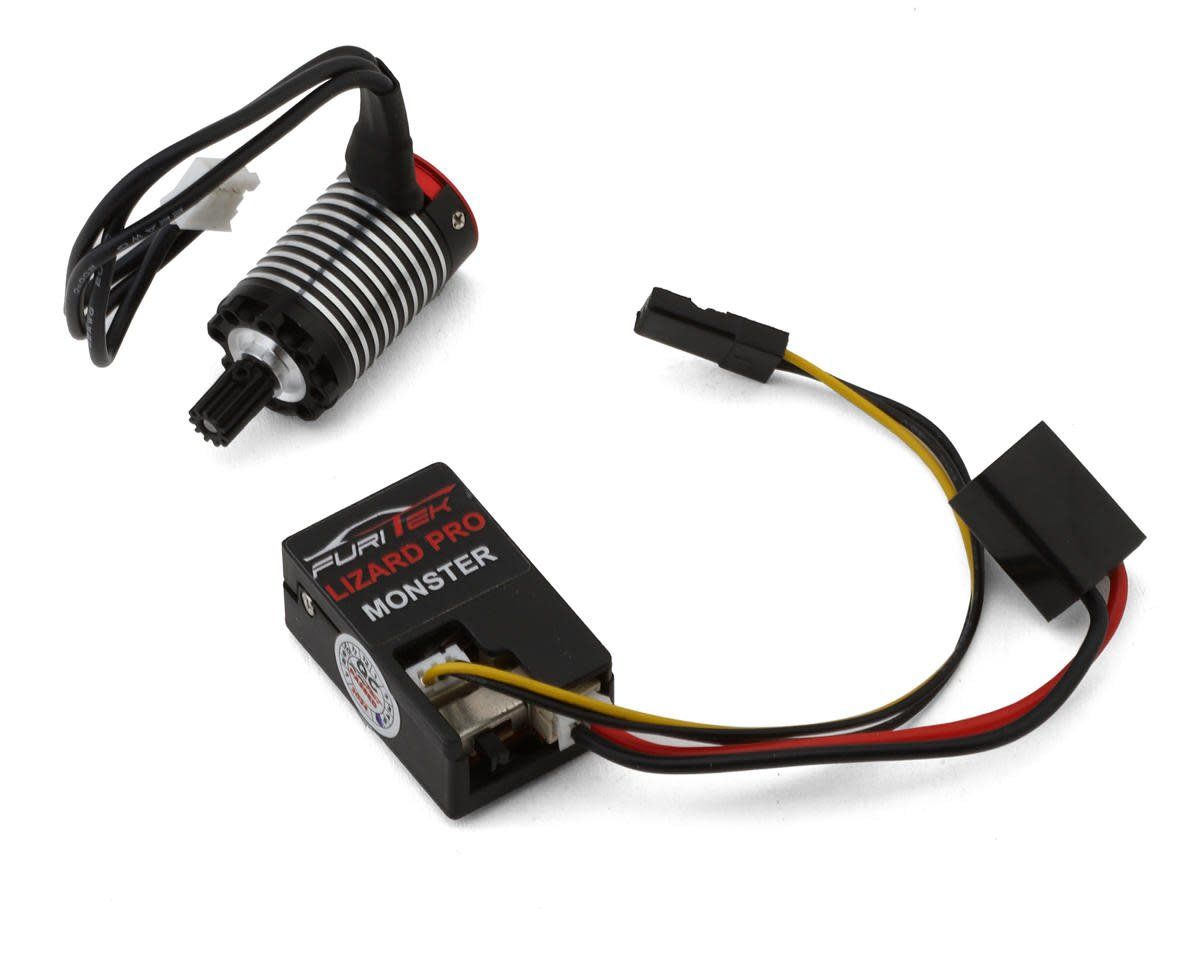

#FUR-2380 Furitek TRX-4MT Monster Brushless Power System

Monster Combo Overview:

The Lizard Pro dual Brushed and Brushless ESC from Furitek is a higher performance ESC that was based off the Lizard (non pro) ESC. It takes many of the same features that you expect from the Furitek ESC line up, and improves them if you're looking for extra features, and power options. Changes to the Lizard Pro include a stronger BEC, and 3s LiPo compatibility. Lizard Pros BEC offers 5V or 6.5V outputs, and up to 2.5A of current - enough for the most demanding servo, or accessory line up. For users looking for the ability to utilize a 3s LiPo, while retaining a small size, the Lizard Pro accepts 3s 11.1V LiPo input.

Features:

• Lizard Pro ESC
• Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
• FOC (Field-oriented control) technology
• Water-proof CNC-machined aluminum case
• Built-in wireless
• Built-in HV switchable BEC
• Built-in switch power
• Super easy programming via App on both Android and IOS
• Lifetime free firmware updates
• Realtime telemetry with 10Hz update rate
• Compatible with all transmitter and receiver types
• Motor
• 2 Pole strong magnetic rotor hi-torque motor design
• High purity and higher temperature copper windings, lower copper losses, maximizes efficiency
• Super thin (0.2mm) stator lamination further maximizes efficiency
• High RPM ABEC5 bearings
• Precision balanced rotor, smoothness for best reliability and maximum 60,000 RPM
• CNC machined 6061 T6 aluminum heat sink vein can design
• Precision engineered for maximum energy conversion
• Specially designed end cap with side locking screws that firmly secures the end cap and PCB

Specifications:

• ESC:
• Input Voltage: 2S-3S LiPo
• Waterproof: Yes
• BEC: 5.5V-6.5V Switchable
• Current:
• Continuous: 30A
• Peak: 50A
• Dimensions (LxW): 1.1x0.59" (28x15.5mm)
• Weight: 0.1oz (3.7g)
• Motor:
• Motor Type: Inrunner
• KV: 7500kV
• Pole: 2-Pole
• LiPo: 2-3S
• Power: 80W
• Resistance: 0.7 Ohm
• No Load Current(@10V): .07A
• Size (Diameter x Length): 15x25mm
• Weight: 0.5oz (17g)
• Application: Micro Crawler

Includes:

• (1) Lizard Pro 30A Brushless ESC
• (1) 7500kV­­ Brushless Motor
