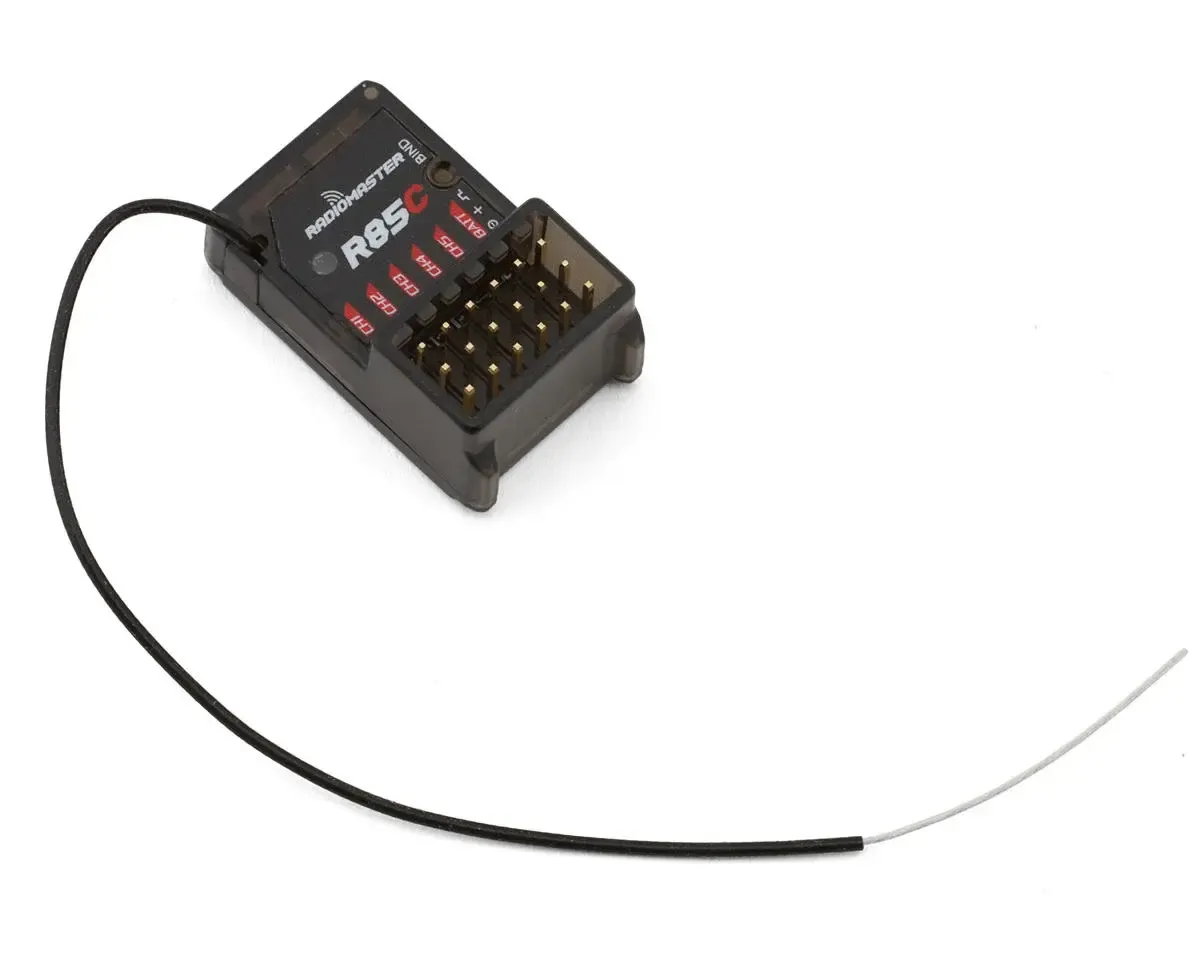

#HP0157.RX-R85C RadioMaster R85C 5-Channel 2.4GHz Receiver

Receiver Overview:

RadioMaster R85C 5-Channel 2.4GHz Receiver. The R85C receiver is Frsky D8 / D16 and Futaba SFHSS compatible and offers a range suitable to many RC modelers. Features a built-in TCXO (temperature-compensated crystal oscillator) to ensure high stability and accuracy in frequency control, high-sensitivity 2.4G Antenna and small, compact size!

Tech NOTE:

• Suitable only for Radiommaster Multi-Protocol radios with the ability to fine-tune protocols. Not compatible with FrSky radios.

Features:

• Compatible with Frsky D8 / D16 and Futaba SFHSS
• High-sensitivity 2.4G Antenna
• Built-in a TCXO (temperature-compensated crystal oscillator), ensures stable and accurate performance in any environment
• 5-Channel

Specifications:

• Input Voltage: DC 4.5 - 8.4V
• Channels: 5CH PWM
• Frequency Range: 2400-2483.5Mhz
• Support Protocol: D8/D16/SFHSS
• Telemetry Power: 100mW / 20dBm
• Antenna Type: High-sensitivity 2.4G antenna
• Dimensions: 31x18.5x13mm
• Weight: 5.55g

Includes:

• (1) R85C Receiver
• (1) Manual
