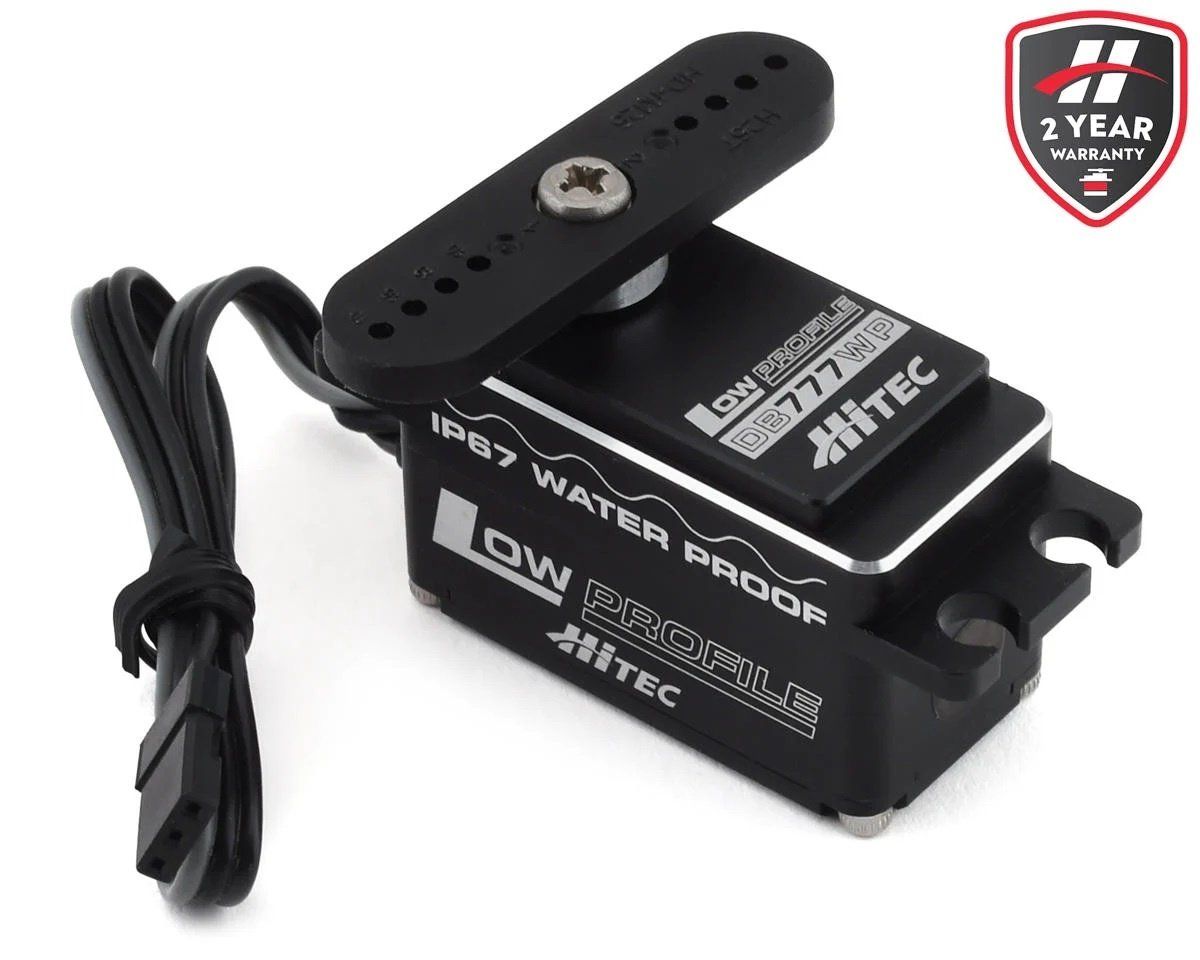

#HRC36778S Hitec DB777WP D-Series 32-Bit MCU Low Profile Waterproof Servo (High Voltage)
SKU HRC36778S
$134.99
In stock
1
Product Details
UPC: 0669962367783
Brand: Hitec
Tags: D-Series,DB777WP,HRC36778S,Hitec,MCU,Servo,Waterproof
This is a Hitec High Voltage DB777WP D-Series 32-Bit MCU Low Profile Waterproof Servo, a high-performance, low profile servo designed with a full metal, IP-67 rated waterproof case. This advanced, programmable servo is a dependably fast, low profile option for 1/10 buggy and touring car drivers. This servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear.
Specifications:
- Operating Voltage Range: (Volts DC) 6.0V ~ 7.4V
- Speed (Second @ 60°): 0.08 ~ 0.06
- Maximum Torque Range: oz./in. 111 ~ 153
- Maximum Torque Range: kg./cm. 8.0 ~ 11.0
- Current Draw at Idle: 35mA/40mA
- No Load Operating Current Draw: 250mA/350mA
- Stall Current Draw: 3500mA/4500mA
- Dead Band Width: 1usec
- Dimensions (Inches): 1.61 x 0.83 x 1.04 in.
- Dimensions (Metric): 41.0 x 21.0 x 26.5
- Weight (Ounces): 2.40
- Weight (Gram): 68.0
- Circuit Type: 32bit Programable Digital
- Motor Type: Brushless
- Gear Material: Metal
- Bearing Type: Brushless
- Output Shaft (type / Ømm): H25T
- Case Material: Aluminum
- Dust/Water Resistance: IP-67 Rated
- Connector Gauge: (AWG)/ Strand Count: 20AWG / 80
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
