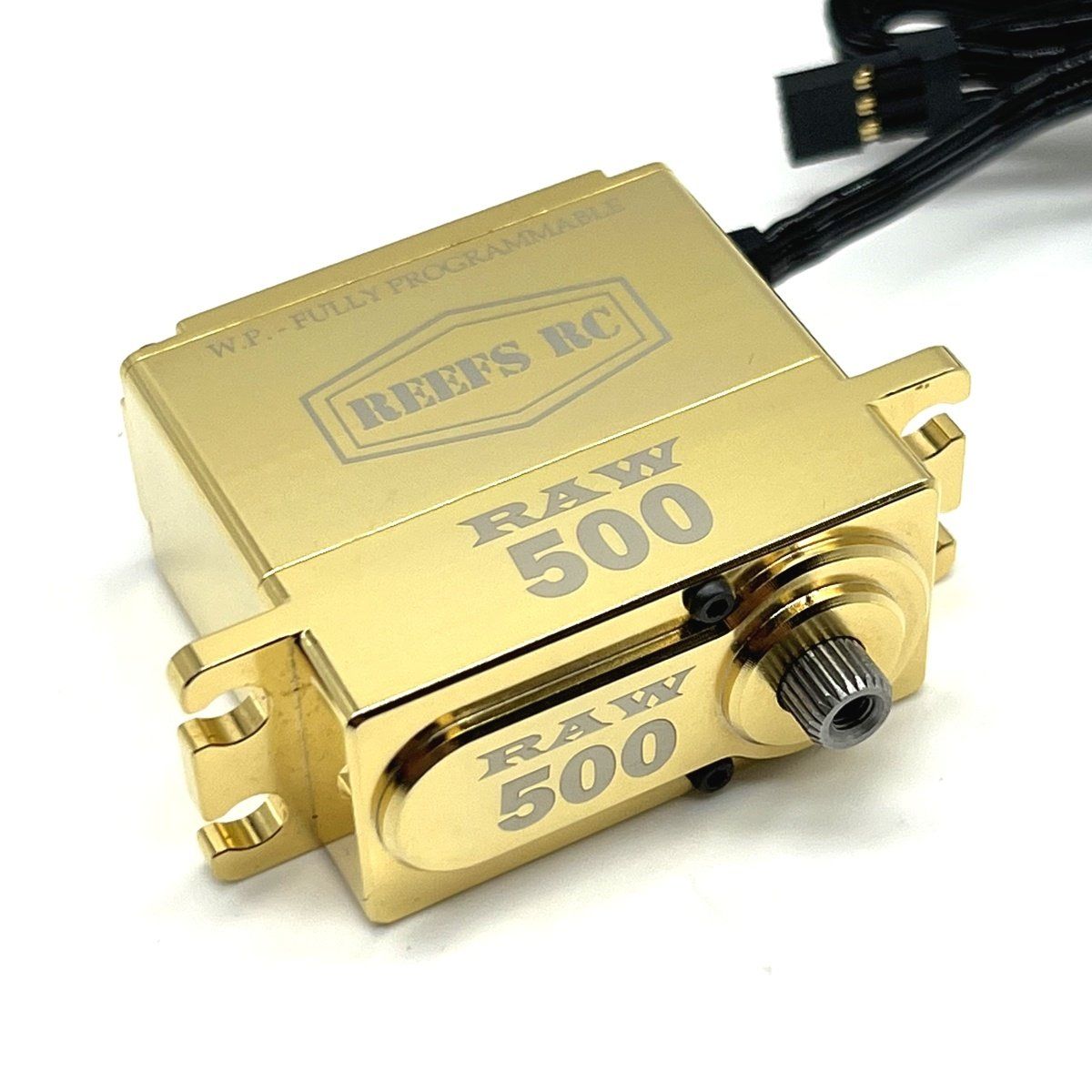

#REEFS159 Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Brass Edition) (145.2g)
SKU REEFS159
$179.99
#REEFS159 Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Brass Edition) (145.2g)
In stock
1
Product Details
UPC: 602024523819
Brand: Reefs RC
Tags: Raw 500,Reefs,Servo,brass
RAW500 Brass Edition, High Torque, High Speed, Programmable, Brushless Servo (565/.08)
Features:
- High Torque High Speed Brushless Servo
- Submarine Waterproof: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable with REEFS Software (REEFS LINK required for Programming)
Specifications:
- Input Voltage Range: 4.8 V - 8.4 V
- Bearing Type: 2 Ball Bearings
- Internal: Steel Gears
- Spline: 25T / Dead Band Width: 2µs
- Brass Casing with Ultra Finish
- Weight: 5.2oz / 145.2G
- Dimension: 1.57 x .79 x 1.5 (LWH)
- Torque: 450oz-in @ 6 V/ 500oz-in @7.4 V/ 565oz-in @8.4 V
- Speed: .11sec @6 V/.095sec @7.4 V/.08sec @8.4 V
- Unload Current: 320mA @ 6.0 V / 360mA @ 7.4 V / 400mA @ 8.4 V
- Load Current: 4000mA @ 6.0 V / 4300mA @ 7.4 V / 4600mA @ 8.4 V
- BEC not required, recommended for max performance
