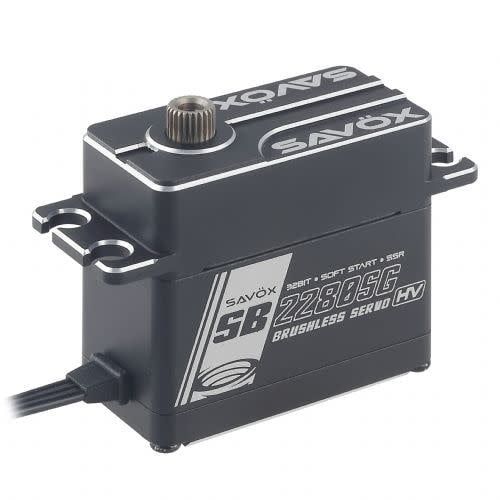

#SB-2280SG Savox High Voltage Brushless Steel Gear Monster Torque Servo with Soft Start, 0.12sec / 833.2oz @ 8.4V

High Voltage Brushless Steel Gear Monster Torque Servo with Soft Start, 0.12sec / 833.2oz @ 8.4V

The Savox SB-2280SGP High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

• Unique steel gear train.
• Capable of HV operation.
• Brushless motor for smooth operation and efficiency.
• Ideal for 1/8 buggies, crawlers, and large-scale aircraft.

Specifications:

• Torque @ 6V—40.0kg-cm/555.5oz-in
• Torque @ 7.4V—50.0kg-cm/694.4oz-in
• Torque @ 8.4V—60.0kg-cm/833.2oz-in
• Speed @ 6V—0.17 sec/60°
• Speed @ 7.4V—0.14 sec/60°
• Speed @ 8.4V—0.12 sec/60°
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 83g

Technical Specs:

• Operating Temperature: 14°—122°F (-10°—50°C)
• Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
• Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V, 8400mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 ∓ 5mm
• Output Gear Spline: 25 Tooth
• Operating Travel: 100° (1000—2000µsecond)
• Neutral Position: 1500µsecond
• Pulse Width Range: 800—2200µsecond
• Maximum Travel: Appx 130° (900—2100µsecond)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
