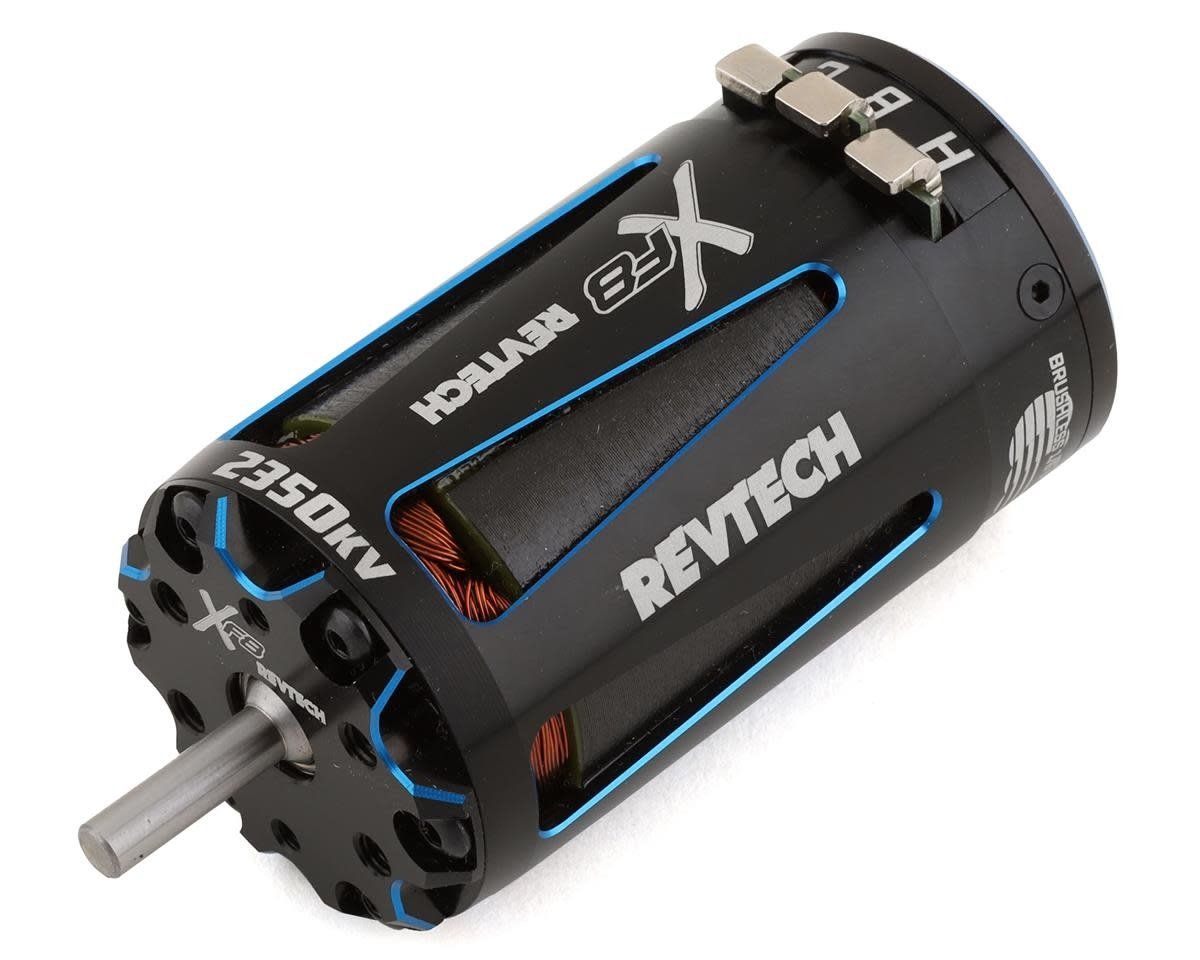

Trinity XF8 1/8 Scale Truggy Sensored Brushless Motor (2350kV) #REV2111

Trinity XF8 1/8 Scale Truggy Sensored Brushless Motor. This motor has been designed to product a top-quality motor capable of extreme performance in 1/8 applications. The XF8 series has several updated features separating it apart from the rest.

Features:

• Innovative 8-magnet "staggered Magnet" rotor that offers low cogging effect and torque pulsation greatly improves control feel around corners.
• Mechanical timing adjustable 40 degrees (CCW/CW).
• Open Can Design to increase internal air circulation and reduces heat.
• Rebuildable design for easy routine maintenance which will prolong the motor life.
• CNC machined aluminum Can, high purity copper windings, rotor structure, high-quality alloy steel output shaft, and high-precision bearings for high durability and smoothness.
• Updated 90 Degree “U” solder tabs at the bottom of the motor for easy soldering and wiring.
• Designed to accommodate all 1:8 applications
• High-Strength and Heat Resistant Magnet Formula
• Advanced Hall Sensing System design separating the rotor magnet from the magnet pickup that Insures a Clear Signal and Protects from Other Signal Interference.
• Precision CNC Machined Aluminum Alloy Case
• High Heat Resistant Pure Copper Wire
• Sensored and Sensorless Compatibility
• Replaceable Sensor Board
• Replaceable Rotor
• High RPM Precision Bearings
• Meets ROAR Specifications

Specifications

• Voltage: 2S to 6S LiPo/LiHV
• Length: 75mm
• Weight: 385g
