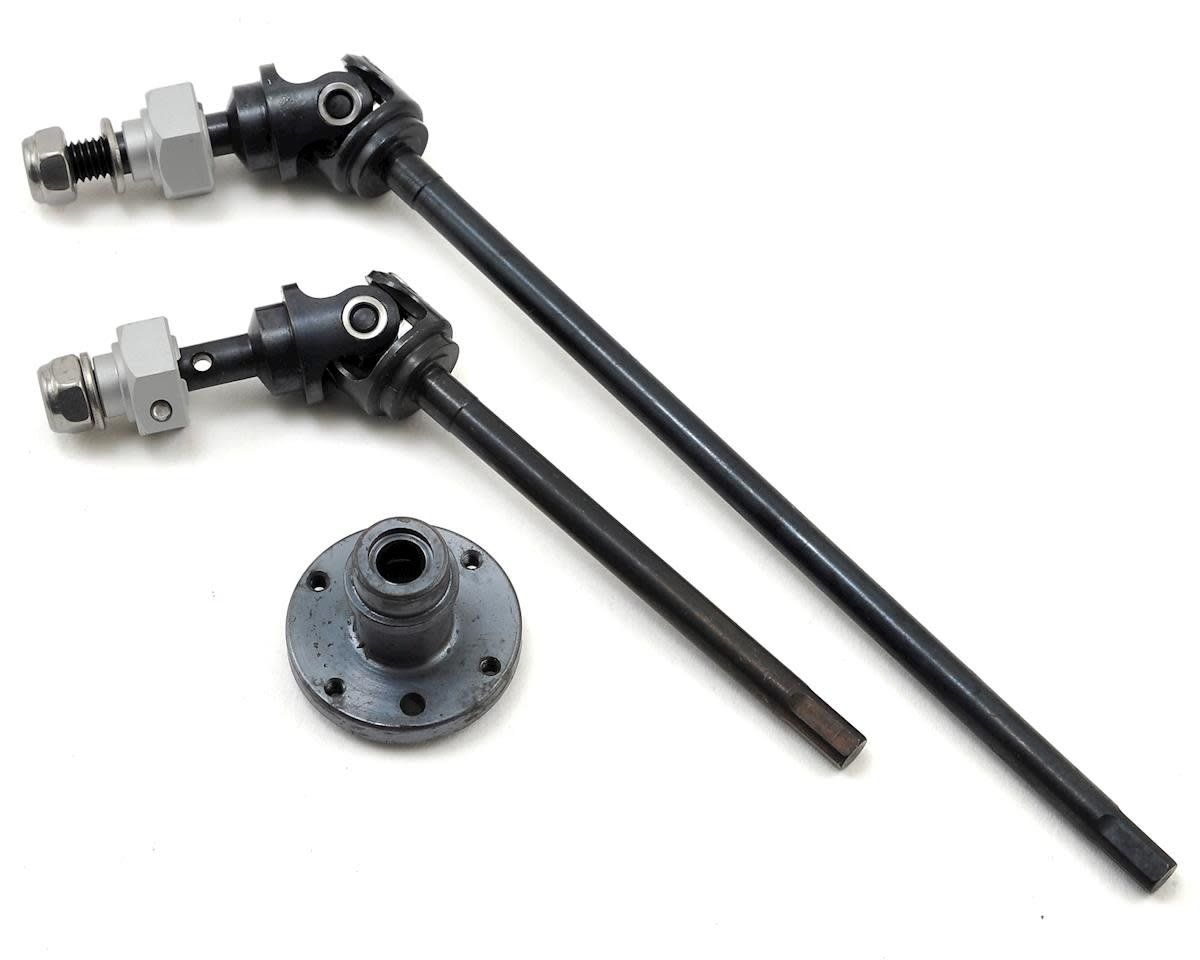

#VPS08110 Vanquish Products VXD Universal AR60 Axle Set

The Vanquish VXD Universal AR60 Axle Set features an ultra heavy duty rebuildable universal axle configuration that delivers reduced vibration and increased 60° steering angle. No other AR60 axle even comes close! Package includes two AR60 Axles, two wheel hexes, one locker, two wheel nuts, two bearings, and two washers.

Features:

• Fully constructed of domestic high strength chromoly steel
• 5mm Stub Shaft Design (5mm stub shaft requires the use of an 8mm driver to tighten the included lock nut)
• Squared Locker Engagement Design - Features higher cross sectional area engagement for increased strength
• Chromoly Spool is included and required for use with these axles
• 12mm Clamping Hexes with 5mm thru bore
• Comes hand assembled
• Ultra high strength 4-way cross pin
• Replaceable bushings for a longer lasting product
• Full selection of rebuild and replacement parts available
• Achieve up to 60 degree of steering angle
• Design for maximum material between link mount screws, some rubbing may occur (May require slight grinding of screws that hold lower link mounts).

NOTE:

• 5mm stub shaft requires the use of an 8mm driver to tighten the included lock nut. Many 8mm drivers have too large of an outside diameter to fit into many wheels. A compatible modified 8mm driver is available (VPS07100).
• May require slight grinding of screws that hold lower link mounts.
• Hex cross pin is not included and must be purchased separately (AXI30163)
• Universal style axles will have a chattering effect at high angles, this is normal with almost all universal style designs.
