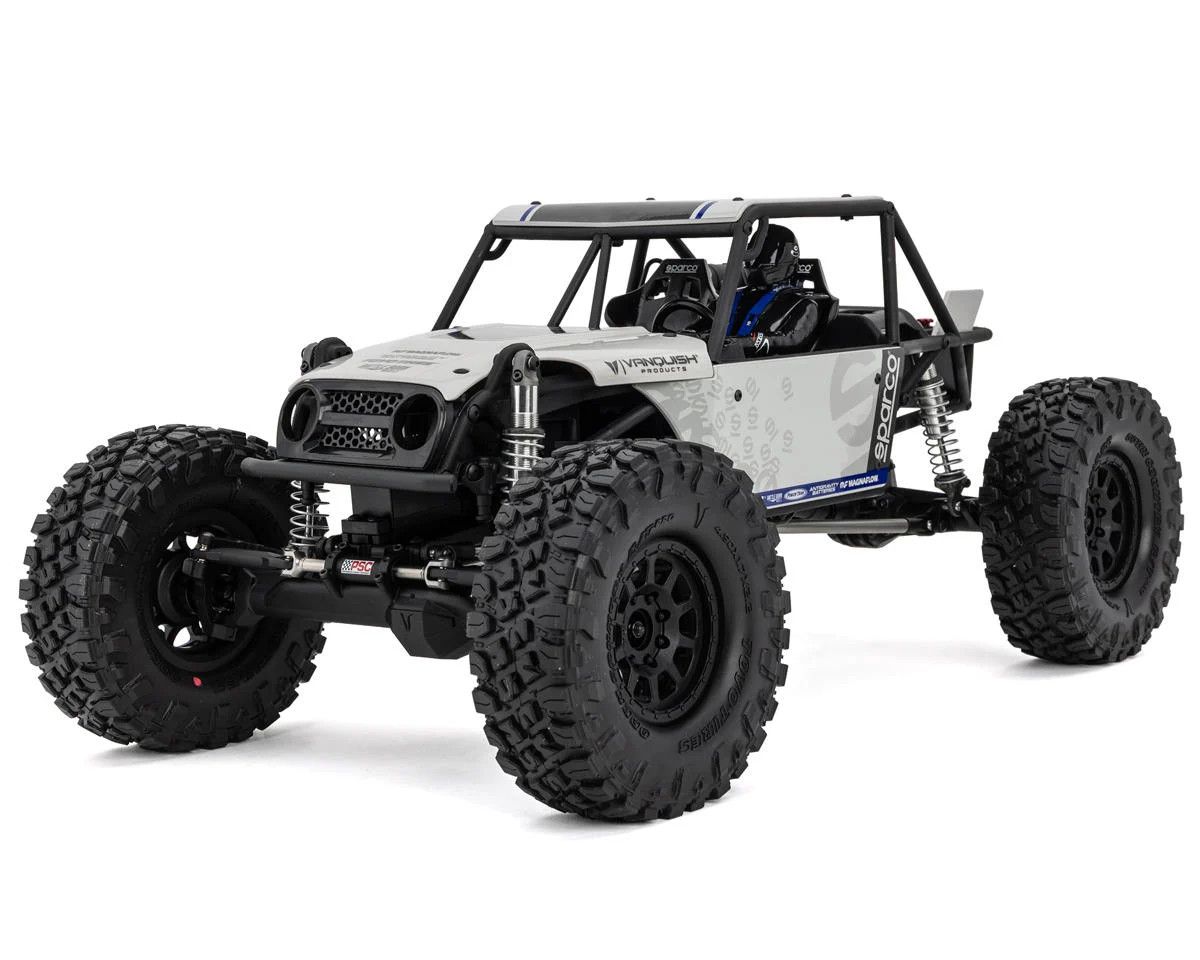

#VPS09018 Vanquish Products H10 Optic 1/10 4WD RTR Brushless Rock Crawler (Sparco V2)
SKU VPS09018
$499.99
In stock
Product Details
UPC: 791512787359
Brand: Vanquish Products
TRAIL
PURPOSE BUILT BUGGY
H10 AXLES
SIMULATED HYDRO STEERING
OPTIC BODY
MOLDED ABS HARDBODY
2.2" WHEELS
4.9" RED COMPOUND TOYO TIRES
H10 HYDRO FRONT AXLE
Scale appearance meets performance with the new H10 Hydro Front Axle steering system. Developed to simulate a double ended hydraulic ram steering system used in off-road vehicles. Utilizing a standard steering servo hidden behind the axle, the steering system is isolated from the chassis. The H10 Hydro front axle uses a 3pc ram that is protected and moved away from obstacles. The width of the H10 axle is increased by 0.600" compared to the F10 for even greater stability.
PSC LICENSED H10 HYDRO STEERING HIGHLIGHTS
4-LINK WITH AXLE MOUNTED SERVO
The simulated hydro ram replaces a traditional tie rod and the steering servo is hidden behind the axle. The H10 steering knuckles allow for the steering drag link to be protected and out of sight. The hydro front axle includes VDI universal axle shafts for 47° of steering angle.
INTEGRATED STEERING SKID PLATE
The ram housing is secured by assembling it between the housing and servo mount, clamps on the ram housing add additional scale appearance. The axle housing has integrated C's, front lower skid plate truss and a removable 3rd member.
DETAILED MOLDED TUBE CHASSIS
H10 CHASSIS DETAILS
The styling of the H10 chassis is derived from Trail Buggies built to tackle the world's toughest terrain in comfort and style. The 2-seat symmetrical design preserves a narrow overall width for easy navigation around obstacles. Short front and rear overhangs optimize approach and departure, allowing tires to hit obstacles first.
BATTERY COMPARTMENT SIZE: 93MM X 36MM X 42MM
SECURE BATTERY ACCESS
The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.
H10 OPTIC DETAILS
SPARCO OFFICIALLY LICENSED
Sparco is the world’s largest producer of motorsport racing safety equipment and accessories. Sparco was created in 1977 to provide the best fireproof clothing for racers competing at both the professional and amateur level. Sparco has become the world leader in the production of fireproof clothing for racing drivers due to the quality and style of its designs and the comfort and durability of its products. From racing to recreation Sparco has been designing safe and innovative products for all markets. The H10 Optic RTR includes a Sparco equipped molded driver figure and Sparco seats.
H10 OPTIC BRUSHLESS RTR DRIVETRAIN
VFD TRANSMISSION
The center of the H10 Optic RTR is the proven VFD transmission equipped with 6% overdrive. Providing a low and forward motor position with a protective skid plate along the front of the skid plate.
OVERDRIVE TRANSFER CASE
Full ball bearing and metal gears provide strength and longevity for worry free performance.
H10 HYDRO FRONT AXLE
Front and Rear H10 axles are 0.600" wider than F10 Straight axles and built around the proven machined 30/8T Hypoid ring and pinion gear set.
UNIVERSAL JOINT AXLE SHAFTS
VDI Front axle shafts are 0.600" Wider than F10 Straight axles and provide 47° of steering angle.
HOBBYWING FUSION RTR 1800KV
BRUSHLESS 2-IN-1 MOTOR AND ESC COMBO
Improved brushless performance and control - a first for Vanquish Products. Hobbywing’s FOC technology allows for smooth, low speed, precision driving over all obstacles. With an integrated ESC, wiring is simplified.
TOYO TIRES R/T PRO 4.9" RED COMPOUND TIRE
Our proven sticky RED compound allows you to tackle any terrain with these officially licensed Toyo Tires Open Country R/T Pro 4.9" tall tires. The aggressive tread pattern offers excellent performance right out of the package.
LICENSED SPARCO RACING INTERIOR
HIGHLY DETAILED 3D INTERIOR
Molded ABS Interior with scale driver and uses several Licensed Sparco designs
Air Pro RF-5W Helmet
Land+ Gloves
EVO L QRT
Competition Race Suit
Racing Harness
H10 OPTIC BRUSHLESS RTR ELECTRONICS
FUSION RTR 1800KV
The 1800kv brushless motor provides efficient and smooth power on the trails by using Hobbywing's FOC technology.
VT-1
4 Channel digital transmitter with multi model memory gives you the freedom to customize your Optic without having the change the radio.
VS-1
Providing 200 oz/in of steering power through a metal gear set, prepared to point the Toyo Tires R/T Pro where you want to go.
1/10th Scale
Toyo Tires R/T Pro Red Compound 4.9” x 2.2” Tires
Axle Ratio 3.75:1
Pinion 15T 32P
Spur 56T 32P
Overall Width Hex to Hex - 206mm (8.11”)
Wheelbase - 337mm (13.26”)
Overall Height - 200mm (7.87”)
Overall Front Ratio 41.3:1
Overall Rear Ratio 44.0:1
Final Overdrive 6%
RTR Weight (without battery) 5.35lbs (2.43kg)
Battery Compartment Size: 93mm x 36mm x 42mm
