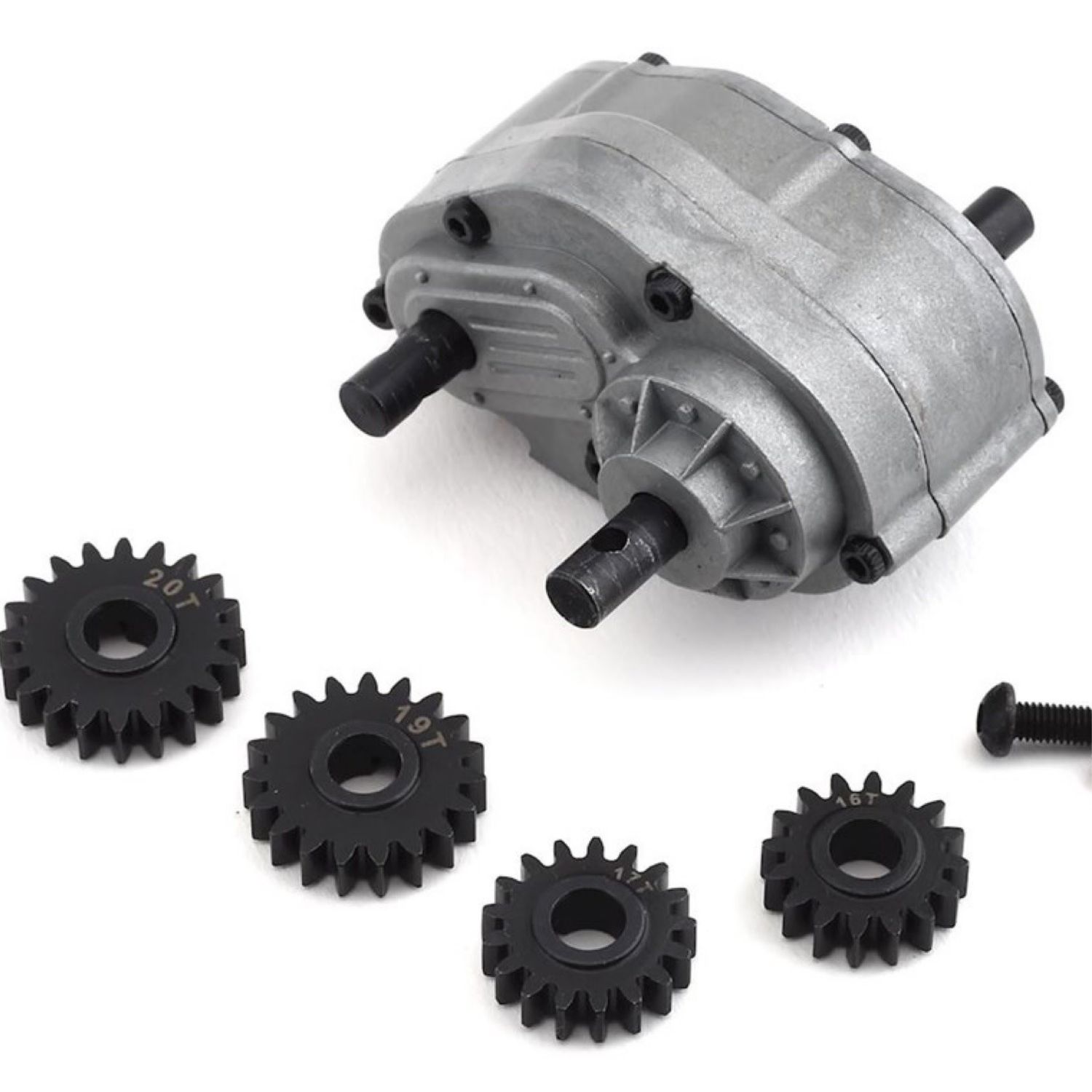

#Z-U0039 RC4WD Trail Finder 2/Gelande II Over/Underdrive Transfer Case Set

Features:

• 1.47 / 1 Gearing
• .8 Mod Gears
• Hardened Steel Gears
• Cast Casing
• Wide Gears
• Has same mounting pattern as Hammer Transfer Case

• 15T/22T (Stock): 1:1.47 Gear Ratio - Front axle goes same speed as rear
• To change the gear ratio, remove the cover on the side with the two shafts.
• The following are the gear combinations of Rear Output to Front Output:
• 17T / 19T combo = 1:1.27 front axle will rotate 27% faster than rear
• 16T / 20T combo = 1:1.33 front axle will rotate 33% faster than rear
• 19T / 17T combo = 1:1.42 front axle will rotate 42% faster than rear
• 20T / 17T combo = 1:1.57 front axle will rotate 57% faster than rear
• 20T / 16T combo = 1:1.67 front axle will rotate 67% faster than rear

• (1) RC4WD Over/Under Drive Transfer Case
• (1) 16T Gear
• (1) 17T Gear
• (1) 19T Gear
• (1) 20T Gear
• (1) M3 x 6mm Steel Button Head Cap Screws (Black)
• (1) M3 x 10mm Steel Button Head Cap Screws (Black)
